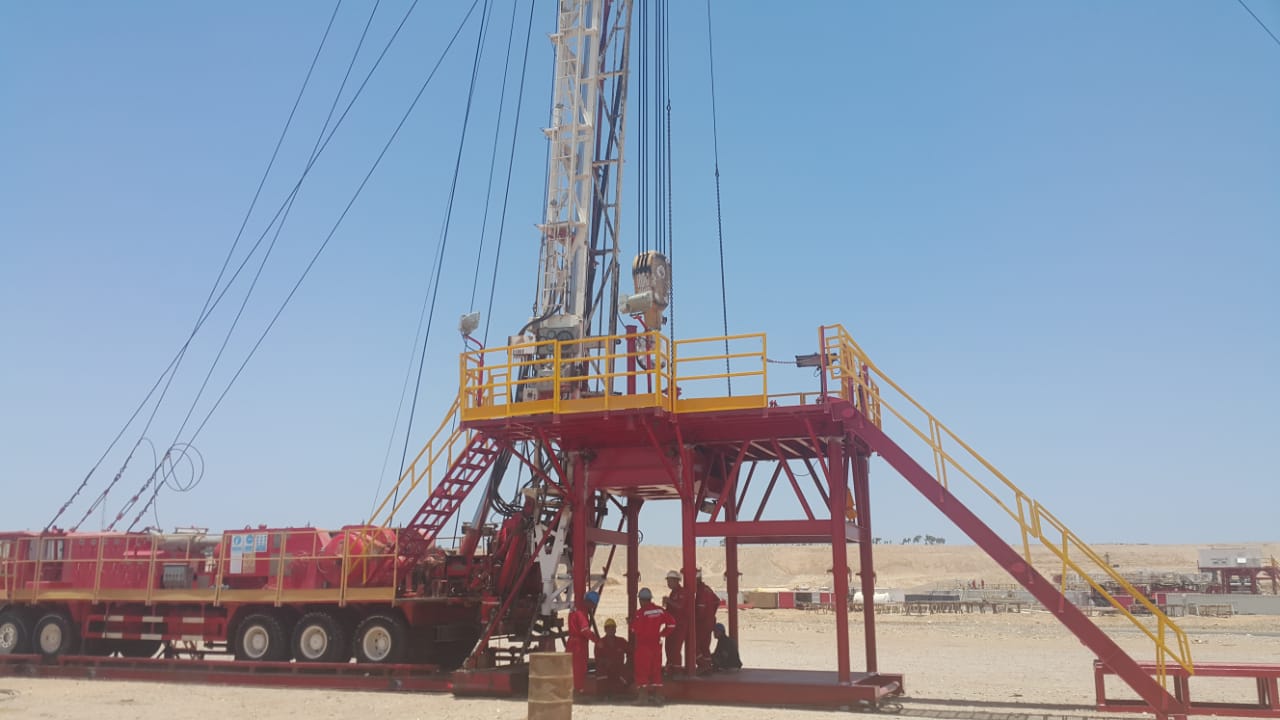

Truck Mounted
Rig Horsepower : 350 hp.
Service depth 9000 ft of 3 1/2" DP'S
Max Hook load 200,000lbs
Rotary table: 27 ½”.
Mud Pump: F-500 triplex pump
Sub-Structure : 5mX5m , with 11.3 ft clear height
Mast Height: 104 ft with Max.
12 JT'S of 4 3/4" DC'S
11"- 5K double ram BOP'S (Pipe ram & blind ram)
11"-5K Hydril
5000 psi Choke manifold
Kommy unit
Mud system: 350 bbls
Shale shaker & mud system equipment.
Tubing running & handling equipment.
Sucker rod running & handling equipment.
3 1/2" Kelly
Diesel & water storage tanks in rig site and main camp.
